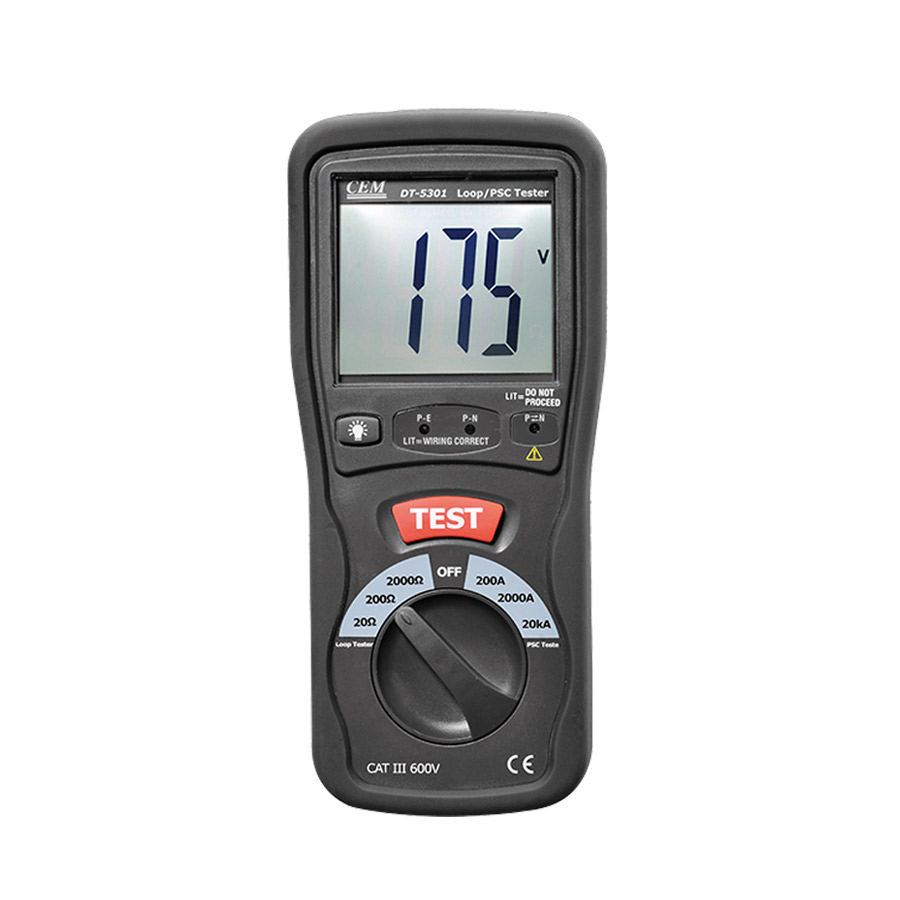

CEM DT-5301 Loop Impedance Tester
£92.39 (Inc. VAT)
The CEM DT-5301 is a professional loop impedance and PSC tester designed for electrical installation testing, enabling accurate measurement of loop impedance, prospective short circuit current, voltage, and wiring integrity in residential, commercial, and industrial electrical systems.
Out of stock
The DT-5301 is designed for electricians, inspectors, and maintenance engineers who need to verify the safety and performance of electrical installations. It measures loop impedance (L-PE and L-N) and provides direct readings of Prospective Short Circuit Current (PSC), helping users assess fault conditions and compliance with electrical safety standards.
The instrument features a low-current 15mA loop test mode, allowing measurements on protected circuits without unnecessarily tripping RCD devices. Additional functions include voltage measurement, wiring verification LEDs, reverse polarity indication, and automatic overload protection for safe and reliable operation.
Features
- Measures loop impedance (L-PE and L-N)
- Direct Prospective Short Circuit Current (PSC) measurement
- Low-current 15mA loop testing for RCD-protected circuits
- Three LED indicators for wiring verification
- Reverse phase and neutral wiring detection
- Voltage measurement function
- Large backlit LCD display
- Microprocessor-controlled measurement system
- Automatic overheating protection
- Measures low loop resistance down to 0.01Ω resolution
- Suitable for electrical installation testing and inspection
- CAT III 600V safety rating
Technical Specifications
| Model | DT-5301 |
| Brand | CEM |
| Measurement Type | Loop Impedance & PSC Testing |
| Loop Impedance Ranges | 20Ω / 200Ω / 2000Ω |
| Loop Impedance Accuracy | ±2.5% rdg ±4 digits |
| PSC Range | 200A / 2000A / 20kA |
| Voltage Range | 50V to 250V AC |
| Voltage Accuracy | ±2% rdg ±5 digits |
| Resolution | 0.01Ω |
| Low Current Test | 15mA (2000Ω range) |
| Safety Rating | IEC61010-1 CAT III 600V |
| Power Supply | 6 × AA Batteries |
| Dimensions | 200 × 92 × 50 mm |
| Weight | 582 g |
