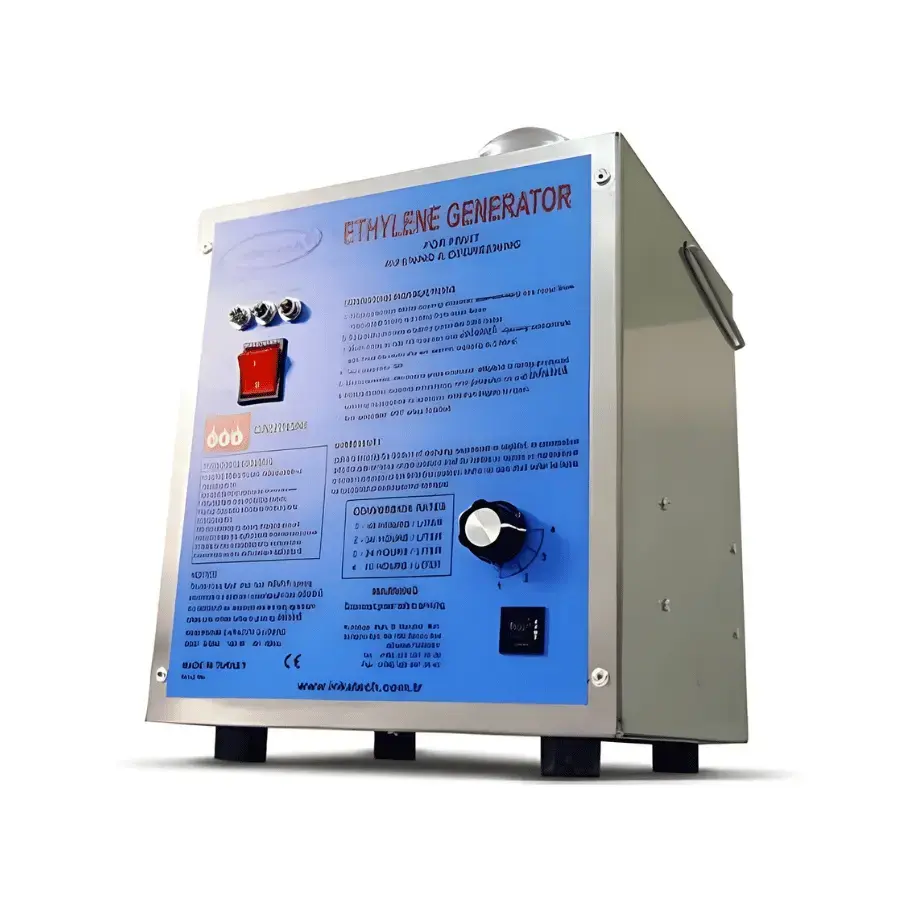

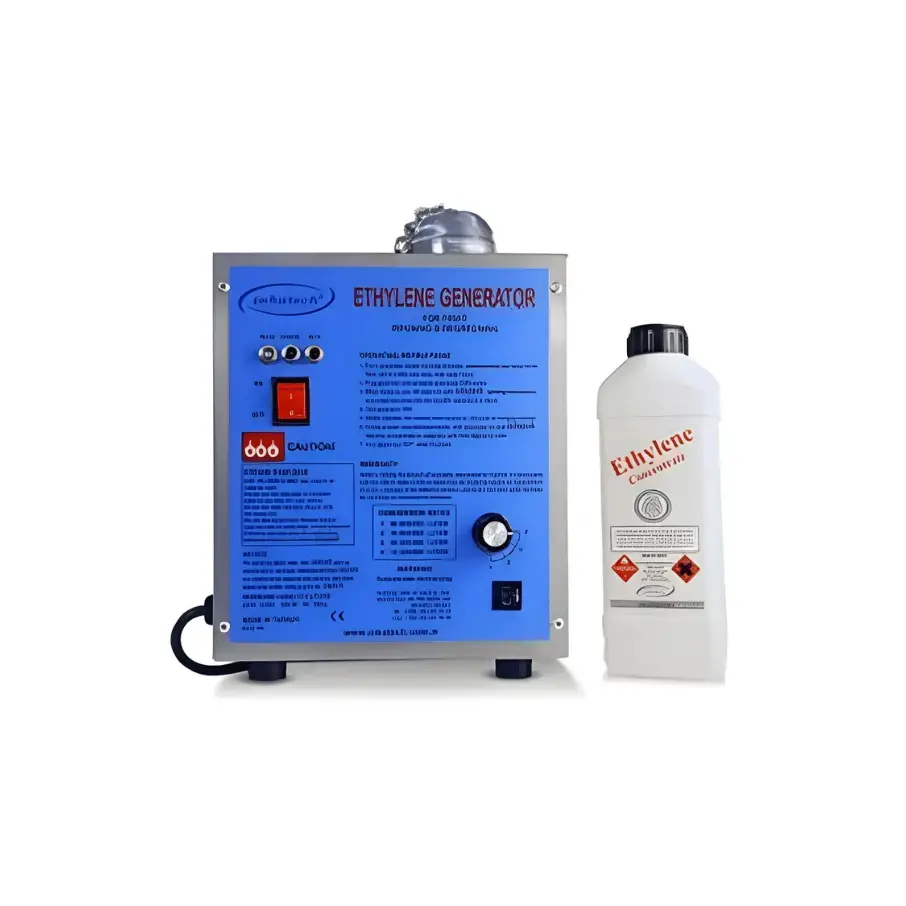

Inkatech Catalytic Ethylene Generator

Controlled Ethylene Application for Commercial Fruit Ripening

The Inkatech catalytic ethylene generator provides a practical method of producing ethylene for controlled fruit ripening and degreening applications. Designed for use in commercial ripening environments, the system converts compatible ethylene concentrate into ethylene through a controlled catalytic process.

This approach provides an alternative to handling pressurised ethylene cylinders and is particularly suitable for businesses involved in the storage, processing, distribution and ripening of fresh produce.

Designed for Controlled Fruit Ripening

Ethylene is a naturally occurring plant hormone that plays an important role in the ripening process of climacteric fruits. Controlled ethylene application can be used to initiate and manage ripening under suitable temperature, humidity and ventilation conditions.

The Inkatech generator is suitable for commercial ripening applications involving produce such as bananas, mangoes, tomatoes and other ethylene-responsive fruits.

Suitable for Fruit Degreening Applications

In addition to fruit ripening, controlled ethylene application can also be used for degreening applications, including suitable citrus produce. This makes the generator useful for fresh produce businesses handling different types of fruit throughout the year.

Catalytic Technology Instead of Pressurised Gas Cylinders

The generator uses catalytic technology to produce ethylene from compatible liquid concentrate. This eliminates the need to use a conventional pressurised ethylene cylinder directly at the generator and simplifies ethylene application within suitable commercial ripening facilities.

Adjustable Operating Cycles

The system allows the ethylene concentrate consumption rate to be configured according to the required operating cycle. One litre of compatible concentrate can be consumed over selectable periods of 12, 24, 36 or 48 hours, providing flexibility for different ripening programmes and room requirements.

Automatic Temperature Control

Integrated automatic temperature control maintains the conditions required for the catalytic conversion process, helping the generator deliver stable and consistent operation throughout the selected cycle.

2-Litre Concentrate Capacity

The built-in reservoir has a capacity of 2 litres, reducing the need for frequent refilling during commercial ripening operations.

Compact and Portable Design

With dimensions of 215 × 235 × 280mm and a body weight of approximately 5.5kg, the unit can be conveniently positioned and moved between suitable commercial ripening environments when required.

Key Features

• Catalytic ethylene generation for commercial fruit ripening
• Suitable for fruit ripening and degreening applications
• Designed for use with compatible ethylene concentrate
• Alternative to direct use of pressurised ethylene cylinders
• 2-litre concentrate reservoir
• Selectable 12, 24, 36 or 48-hour consumption cycles per litre
• Automatic temperature control
• Compact and portable construction
• Low-maintenance design
• 230V / 50Hz operation
• 1-year manufacturer warranty

Typical Applications

• Commercial fruit ripening rooms
• Banana ripening
• Mango ripening
• Tomato ripening
• Citrus degreening
• Fresh produce distribution centres
• Fruit packing and processing facilities
• Fresh produce storage operations

Technical Specifications

Generator Type	Catalytic ethylene generator
Concentrate Capacity	2 litres
Power Supply	230V / 50Hz
Liquid Consumption	1 litre per 12 / 24 / 36 / 48 hours
Dimensions	215 × 235 × 280mm
Weight	5.5kg (body only)
Ethylene Concentrate Packaging	12 × 1 litre per box
Warranty	1 year
