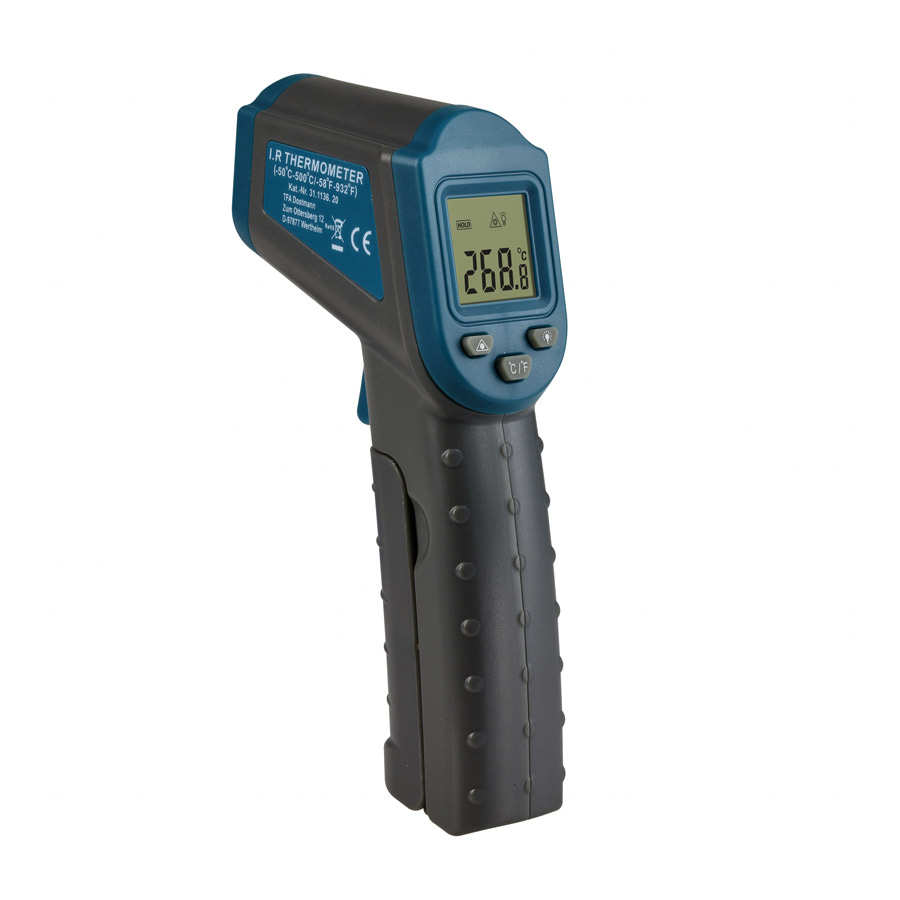

TFA 31.1136.20 (RAY) Infrared Laser Thermometer

Check Surface Temperatures in Just One Second

The TFA RAY 31.1136.20 infrared laser thermometer provides quick, contact-free measurement of surface temperatures across a wide range of professional and everyday applications. Simply aim at the required surface, use the integrated laser sight to identify the target and obtain the temperature reading in approximately one second.

With a measuring range from -50°C to +500°C, 12:1 optical resolution and an illuminated display, the RAY is suitable for checking food surfaces, heating and air-conditioning systems, automotive components, electrical equipment and many other surfaces where contact measurement is inconvenient or undesirable.

Non-Contact Measurement from -50°C to +500°C

The infrared sensor measures surface temperatures without physically touching the object. Its wide -50°C to +500°C (-58°F to +932°F) measuring range makes the thermometer suitable for both low and high surface temperature checks.

Laser Targeting for Easier Measurement

An integrated laser sight helps identify the area being measured, making it easier to position the infrared laser thermometer correctly before taking a reading. The laser is used for targeting, while temperature itself is measured using infrared technology.

12:1 Distance-to-Spot Ratio

The 12:1 distance-to-spot ratio allows surface temperatures to be checked from a practical working distance. For appropriate measurement results, the target surface should always be larger than the infrared measurement spot.

Temperature Measurement in One Second

With a measuring time of approximately one second, the TFA RAY enables quick temperature checks when inspecting multiple surfaces or carrying out routine temperature monitoring.

HACCP Compliant for Food Applications

The TFA RAY is HACCP compliant and is suitable for hygienic, contact-free temperature checks within food industry self-inspection procedures. It can be used to check surface temperatures without inserting a probe into the food product.

Useful for HVAC and Building Inspection

Non-contact measurement makes the RAY useful for checking heating and air-conditioning systems and identifying temperature differences around building surfaces. It can also assist with locating cold bridges and checking components that may be difficult to reach safely with a contact thermometer.

Automotive and Maintenance Applications

The thermometer can be used for rapid surface temperature checks on automotive and mechanical components, including brake systems, as well as electrical and maintenance applications where temperature differences may help identify potential problems.

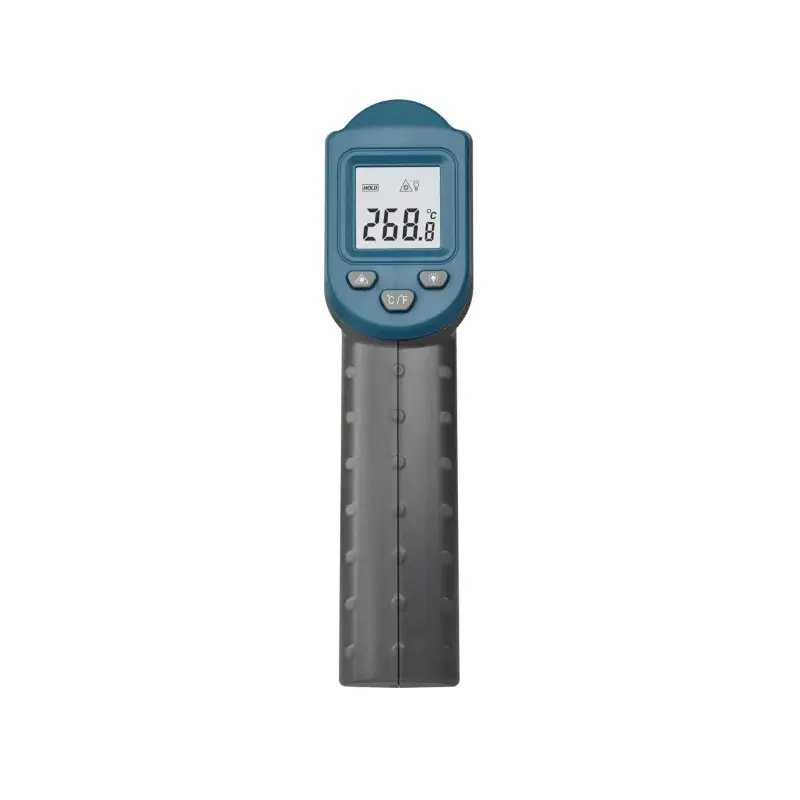

Illuminated Digital Display

The backlit digital display provides clear temperature readings and makes the thermometer easier to use in poorly illuminated work areas.

Key Features

• Infrared laser thermometer for non-contact surface measurement
• -50°C to +500°C measuring range
• Integrated laser targeting
• 12:1 distance-to-spot ratio
• Approximately one-second measuring time
• HACCP compliant
• Backlit digital display
• 0.95 fixed emissivity
• 0.1°C / 0.1°F display resolution
• Selectable °C / °F units
• Automatic power-off
• Compact handheld design

Technical Specifications

Model	TFA RAY 31.1136.20
Product Type	Infrared laser thermometer
Temperature Range	-50°C to +500°C (-58°F to +932°F)
Resolution	0.1°C / 0.1°F
Accuracy	±1.5°C to ±3°C depending on measuring range
Measuring Time	Approx. 1 second
Distance-to-Spot Ratio	12:1
Targeting	Laser sight
Emissivity	0.95
Display	Backlit digital display
Power Supply	2 × AAA 1.5V batteries
Batteries Included	No
Material	Plastic
Dimensions	39 × 110 × 144 mm
Weight	144 g

Typical Applications

• Food surface temperature checks
• Professional food industry self-inspection
• HVAC and air-conditioning systems
• Heating systems
• Building and cold-bridge inspection
• Automotive diagnostics
• Electrical and mechanical maintenance
• Household temperature checks
• Craft and hobby applications

What’s Included?

• TFA RAY 31.1136.20 Infrared Laser Thermometer
• Instruction Manual

Please note: 2 × AAA 1.5V batteries are required and are not included.
