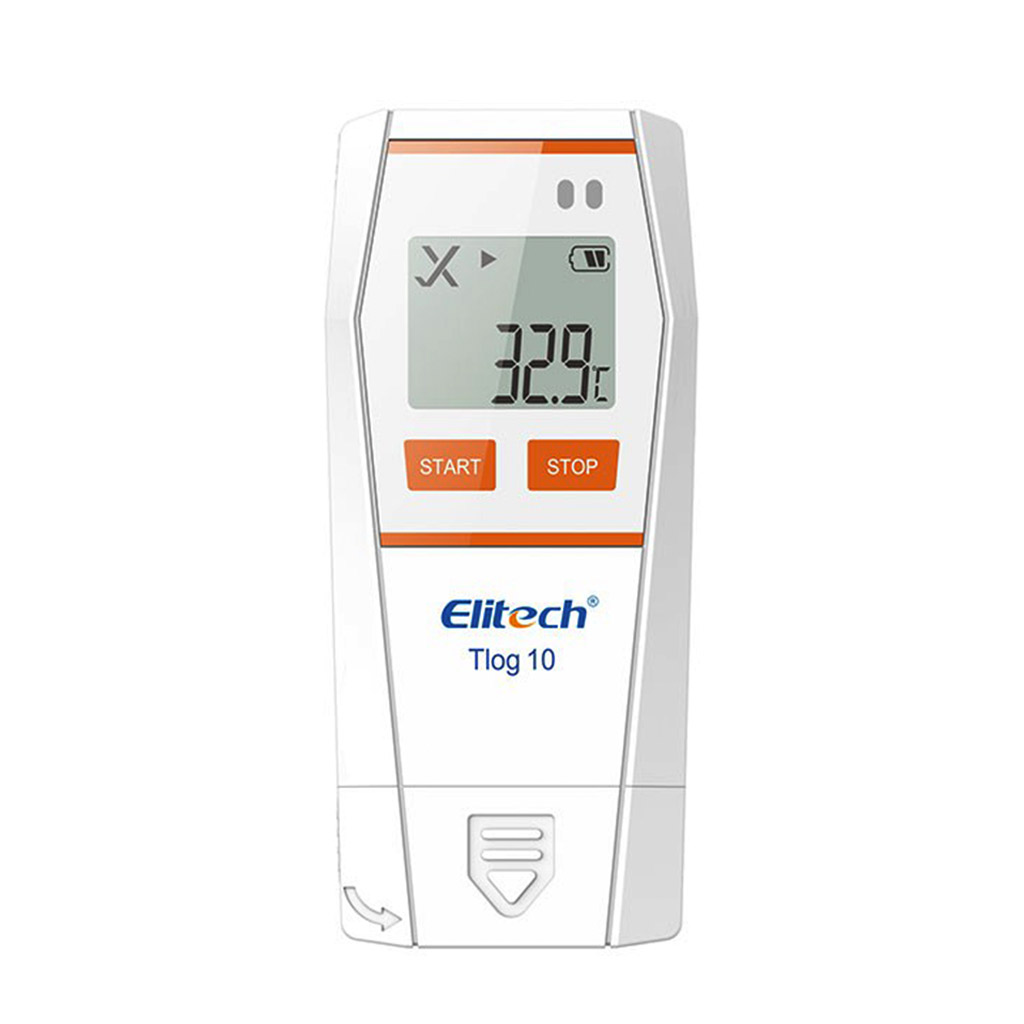

Elitech Tlog 10 Temperature Data Logger

Get Your Temperature Report Simply by Connecting to USB

The Elitech Tlog 10 temperature data logger provides reusable temperature monitoring for cold chain logistics, food and pharmaceutical transport, storage facilities and other temperature-sensitive applications. Its internal digital temperature sensor records conditions from -30°C to +70°C, with capacity for up to 32,000 temperature records.

One of the Tlog 10’s key advantages is automatic PDF report generation. Connect the logger to a computer through its integrated USB interface and the recorded temperature data can be accessed as a PDF report without requiring additional software. For advanced configuration and data analysis, the logger is also compatible with ElitechLog software.

Automatic PDF Reports Without Additional Software

After a monitoring period, simply connect the Tlog 10 to a computer via USB to access the automatically generated PDF temperature report. This makes it particularly convenient when temperature records need to be reviewed or shared quickly without installing dedicated software on every computer.

Store Up to 32,000 Temperature Records

The internal memory can store up to 32,000 temperature readings, providing sufficient capacity for detailed monitoring throughout storage, transportation and cold chain operations.

Internal Digital Temperature Sensor

The standard Tlog 10 uses an internal digital temperature sensor and does not require an external probe. This compact all-in-one configuration is suitable for monitoring ambient conditions inside refrigerated transport, cold storage areas, insulated packaging and other controlled environments.

Temperature Measurement from -30°C to +70°C

A measuring range from -30°C to +70°C (-22°F to +158°F) covers a wide variety of chilled, ambient and temperature-controlled storage and transport applications.

Configurable Recording Interval

The recording interval can be configured from 10 seconds to 24 hours, allowing the logger to be adapted to both detailed short-term monitoring and extended storage or transportation applications.

Five Configurable Alarm Limits

The Tlog 10 supports multiple alarm thresholds, including three high and two low alarm limits. This provides greater flexibility when recorded temperatures need to be evaluated against different excursion levels.

Check Important Information on the LCD

The integrated LCD allows temperature and logger information to be checked directly on the device, helping users review monitoring status without first connecting the logger to a computer.

Advanced Analysis with ElitechLog

For applications requiring more detailed configuration and analysis, the Tlog 10 is compatible with ElitechLog for Windows and macOS. The software can be used to configure logger parameters, access recorded data, display measurements graphically and export reports in PDF, XLS and TXT formats.

IP65 Protection for Transport and Storage

The logger has an IP65-rated enclosure, providing protection against dust and water jets. This makes the Tlog 10 suitable for many cold chain, warehouse and transport environments while avoiding the implication that the device is designed for water immersion.

Reusable for Multiple Monitoring Cycles

The Tlog 10 is a multi-use temperature data logger. Its replaceable battery and reprogrammable configuration allow the device to be prepared for subsequent monitoring periods after recorded data has been reviewed and saved.

Designed for Cold Chain Documentation

Automatic PDF reporting, configurable alarm limits and a large recording capacity make the Tlog 10 particularly useful when a documented temperature history is required for food, pharmaceutical and other temperature-sensitive products during storage and transportation.

Key Features

• Reusable temperature data logger
• Internal digital temperature sensor
• -30°C to +70°C measuring range
• 32,000-record maximum memory capacity
• Automatic PDF report generation
• No additional software required to access the automatic PDF report
• Integrated USB interface
• Adjustable logging interval from 10 seconds to 24 hours
• Five configurable alarm limits – 3 high and 2 low
• LCD display
• 0.1°C temperature resolution
• Compatible with ElitechLog software
• IP65-rated enclosure
• Replaceable CR2450 battery
• Reusable for multiple monitoring cycles

Technical Specifications

Model	Elitech Tlog 10
Product Type	Reusable USB temperature data logger
Sensor Type	Internal digital temperature sensor
Temperature Range	-30°C to +70°C (-22°F to +158°F)
Temperature Accuracy	±0.5°C (-20°C to +40°C); ±1.0°C outside this range
Resolution	0.1°C
Memory Capacity	Up to 32,000 records
Logging Interval	10 seconds to 24 hours, configurable
Alarm Limits	5 levels – 3 high / 2 low
Report Type	Automatic PDF report
Data Interface	USB Type-A
Software	ElitechLog – Windows and macOS
Software Export Formats	PDF / XLS / TXT
Protection Rating	IP65
Power Supply	CR2450 replaceable battery
Usage	Reusable / Multi-use

Typical Applications

• Cold chain logistics
• Food storage and transportation
• Pharmaceutical storage and distribution
• Refrigerated transport
• Cold storage
• Temperature-controlled warehouses
• Laboratories
• Temperature-sensitive chemicals
• Quality control and temperature documentation
