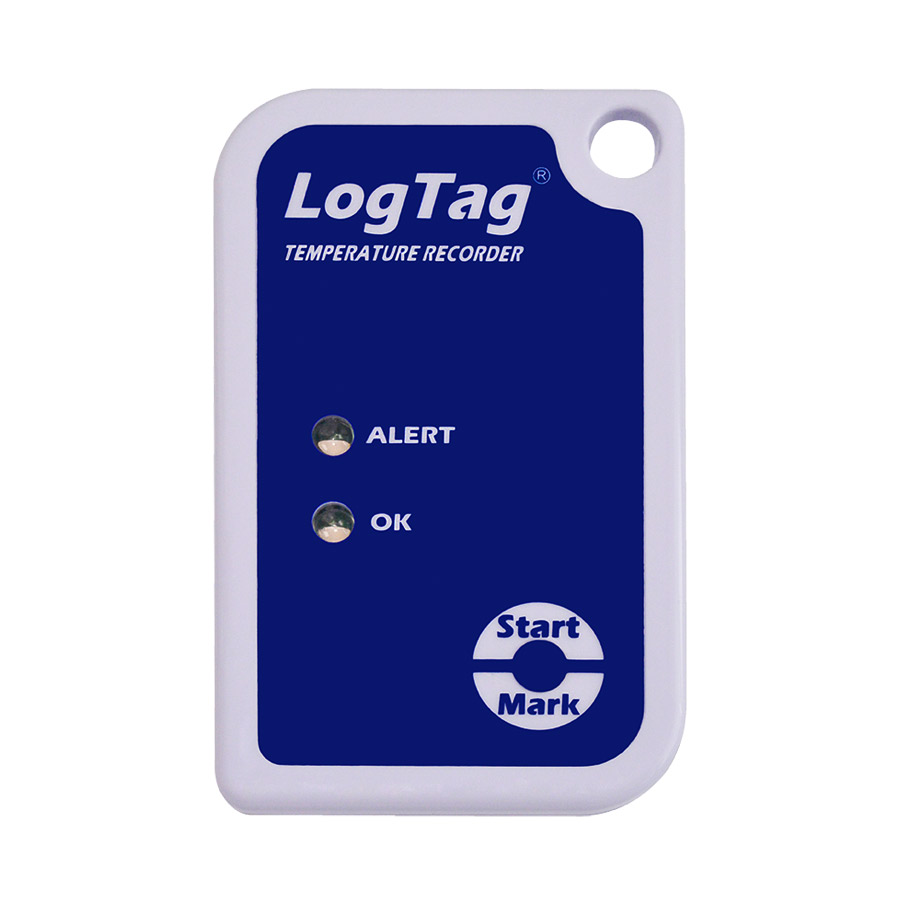

LogTag TRIX-8 Temperature Data Logger

Reusable Temperature Monitoring Across Multiple Trips

The LogTag TRIX-8 temperature data logger is a reusable multi-trip recorder designed to document temperature conditions during cold chain transport, storage and distribution. Its integrated temperature sensor measures from -40°C to +85°C, while internal memory stores up to 8,031 temperature readings.

Configurable upper and lower alarms combined with green OK and red ALERT indicators provide an immediate visual indication of monitoring status without requiring a computer. Recorded data can be downloaded and analysed using LogTag Analyzer through a compatible LogTag LTI-HID interface cradle.

Measure Temperature from -40°C to +85°C

The TRIX-8 provides a wide measurement range from -40°C to +85°C, covering frozen, refrigerated and ambient temperature monitoring applications across transport and storage.

Store Up to 8,031 Temperature Readings

Internal memory stores up to 8,031 readings. This provides approximately 53 days of recording at a 10-minute interval or approximately 80 days at a 15-minute interval.

Configurable High and Low Temperature Alarms

One upper and one lower temperature alarm can be configured according to the requirements of the monitored product or process. This allows temperature excursions to be identified against application-specific limits.

Check Alarm Status Without a Computer

Green OK and red ALERT indicators provide immediate visual status information. This allows users to identify whether an alarm condition has occurred without first downloading the recorded data.

Flexible Recording Intervals and Start Options

The sampling interval can be configured from 30 seconds to several hours. Recording can be started using the push button or programmed for a specific date and time, with an optional start delay of up to 18 hours.

Download a Full Logger in Less Than Five Seconds

LogTag specifies a typical download time of less than five seconds for a full 8,031-reading memory, depending on the computer or readout device being used.

Analyse Recorded Data with LogTag Analyzer

Recorded measurements can be downloaded and reviewed using LogTag Analyzer. The software provides tools for logger configuration, temperature charts, recorded data review and monitoring analysis.

LTI-HID Interface Required

The TRIX-8 does not incorporate a direct USB computer connection. A compatible LogTag LTI-HID interface cradle is required to configure the logger and download recorded data to a computer.

IP65 Protection for Transport and Storage

The TRIX-8 has an IP65-rated enclosure, providing protection against dust and water jets for use in demanding storage, distribution and transport environments. IP65 does not mean the logger is designed for continuous water immersion.

Designed for Multiple Monitoring Trips

Unlike single-use shipment indicators, the TRIX-8 is a multi-use logger designed to be configured and used across repeated monitoring cycles. LogTag specifies a fixed CR2450 lithium battery with a typical operating life of 2–3 years following up to one year of storage under the manufacturer’s stated operating conditions.

EN 12830:2018 Compliant Temperature Recording

The TRIX-8 is specified to EN 12830:2018 for temperature recorders used in the transport, storage and distribution of temperature-sensitive goods.

Key Features

• Reusable multi-trip temperature data logger
• -40°C to +85°C temperature measurement range
• 8,031-reading memory capacity
• Configurable sampling interval from 30 seconds to several hours
• Push-button or scheduled recording start
• Optional start delay up to 18 hours
• One configurable upper temperature alarm
• One configurable lower temperature alarm
• Green OK and red ALERT status indicators
• Typical full-memory download in less than 5 seconds
• Built-in real-time clock
• IP65-rated enclosure
• Fixed CR2450 lithium battery
• Compatible with LogTag Analyzer and LogTag Online
• LTI-HID interface connection
• EN 12830:2018 compliant

Technical Specifications

Model	LogTag TRIX-8
Product Type	Reusable / multi-trip temperature data logger
Temperature Range	-40°C to +85°C
Temperature Accuracy	Better than ±0.5°C (-20°C to +40°C); ±0.7°C (-30°C to -20°C and +40°C to +60°C); ±0.8°C (+60°C to +85°C); ±0.9°C (-40°C to -30°C)
Temperature Resolution	<0.1°C (-40°C to +40°C); <0.2°C (+40°C to +80°C); <0.4°C (+80°C to +85°C)
Sensor Response Time	Typically less than 5 minutes (T90) in moving air at 1 m/s
Memory Capacity	8,031 temperature readings
Sampling Interval	30 seconds to several hours, configurable
Start Options	Push button or specific date/time
Start Delay	Up to 18 hours
Alarms	1 configurable upper and 1 configurable lower alarm
Status Indicators	Green OK / Red ALERT
Protection Rating	IP65
Computer Interface	LogTag LTI-HID interface required
Software	LogTag Analyzer / LogTag Online
Power Supply	Fixed CR2450 3V LiMnO2 battery
Battery Life	1 year storage followed by 2–3 years normal use*
Dimensions	86 × 54.5 × 8.6 mm
Weight	33 g
Case Material	Polycarbonate
Standard	EN 12830:2018

*Manufacturer battery-life specification is based on 15-minute logging with data downloaded monthly.

Typical Applications

• Cold chain monitoring
• Pharmaceutical storage and distribution
• Food storage and transportation
• Refrigerated transport
• Cold rooms
• Warehouses and distribution centres
• Laboratories
• Temperature-sensitive goods
• Multi-trip transport monitoring
