LogTag LTI-HID USB Interface Cradle

Connect, Configure and Download Your LogTag Recorders

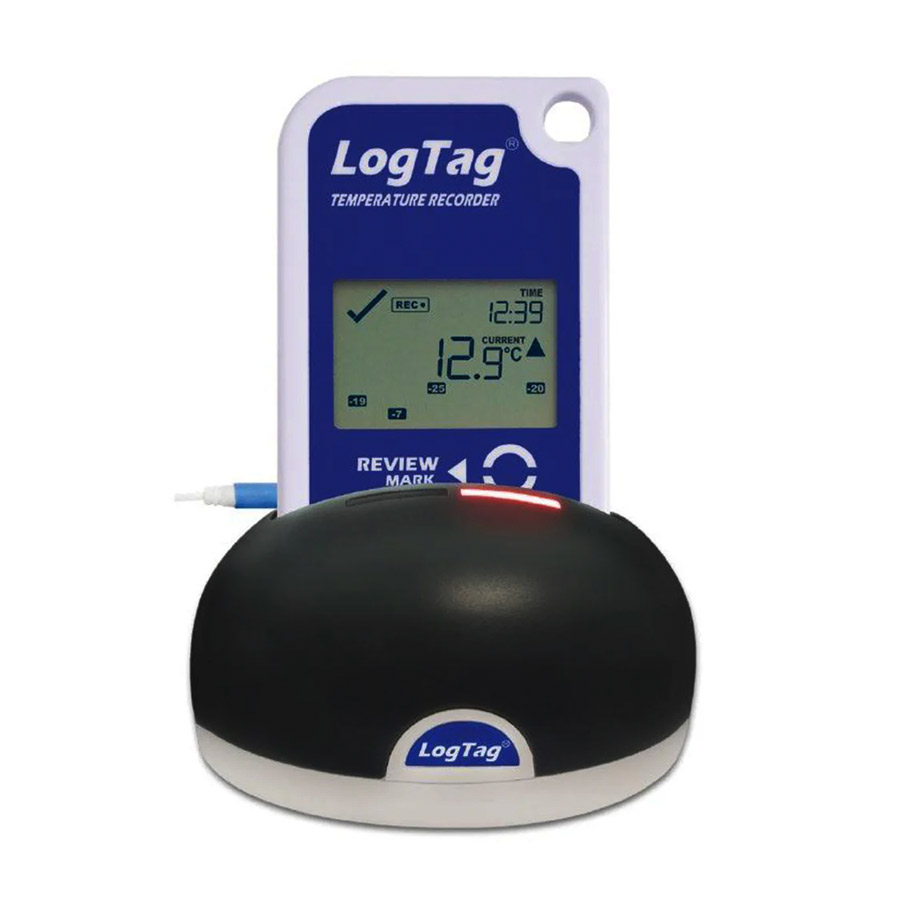

The LogTag LTI-HID USB Interface Cradle provides the communication link between compatible LogTag data loggers and a computer. Insert a compatible recorder into the cradle to download recorded data, configure logger settings and perform supported logger management functions using LogTag Analyzer software.

The LTI-HID is designed for standard LogTag recording products equipped with three silver contact pins on the lower rear case. Its spring-loaded contact system provides the physical connection between the logger and interface while the supplied USB cable connects the cradle to your computer.

Configure and Download Compatible LogTag Data Loggers

The LTI-HID allows compatible LogTag recorders to communicate with LogTag Analyzer. Recorded measurements can be downloaded to a computer and supported logger parameters can be configured before the device is used for another monitoring cycle.

Compatible with Standard 3-Pin LogTag Recorders

The interface is compatible with standard LogTag recording products that communicate through the three silver contact pins located on the rear of the logger. This makes one interface suitable for use with multiple compatible LogTag recorders rather than requiring a separate cradle for each logger.

No Proprietary Windows Interface Driver Required

The LTI-HID uses communication interface drivers built into currently supported Windows operating systems. This removes the need to install the proprietary interface driver required by earlier LogTag interface designs.

Logger configuration and data management are still performed using compatible LogTag software such as LogTag Analyzer.

Red and Green Status Indicators

Two LED indicators provide visual feedback during operation. The red indicator shows when the logger and software are exchanging information or can indicate an error condition, while the green indicator provides activity and ready-status feedback.

Spring-Loaded Contact Interface

The cradle uses LogTag’s spring contact arrangement to establish communication with the contact points on compatible recorders. Insert the logger into the cradle to establish the connection and begin supported download or configuration operations.

Micro USB Connection to Your Computer

The interface incorporates a Micro USB socket and operates over USB 2.0. Power is supplied directly by the connected computer, so the cradle does not require a separate power adapter.

Designed for Repeated Logger Management

A single LTI-HID can be used to configure and download multiple compatible LogTag recorders, making it particularly useful for organisations managing fleets of reusable loggers across cold chain, pharmaceutical, food, laboratory and logistics operations.

Key Features

• Desktop USB interface cradle for compatible LogTag data loggers
• Compatible with standard LogTag recorders using 3-pin rear contacts
• Downloads recorded logger data to a computer
• Supports logger configuration through compatible LogTag software
• Uses built-in Windows HID communication drivers
• No proprietary Windows interface driver installation required
• Red and green status LED indicators
• Spring-loaded logger contact system
• Micro USB connection
• USB 2.0 interface
• Powered directly from the connected computer
• IP50 rated for indoor use
• Includes 1 metre USB cable

Technical Specifications

Model	LogTag LTI-HID
Product Type	Desktop USB interface cradle
Logger Compatibility	Standard LogTag recording products with 3 rear contact pins
Computer Connection	Micro USB
USB Standard	USB 2.0
Power Supply	Powered from connected computer
Indicators	Green Activity LED / Red Busy-Error LED
Recorder Operating Temperature Range	-20°C to +60°C
Storage Temperature Range	-40°C to +70°C
Protection Rating	IP50 – indoor use only
Dimensions	45 × 85 × 71 mm, excluding cable
Weight	74 g, excluding cable
Case Material	Polycarbonate / ABS
USB Cable	1 metre

Typical Applications

• Downloading recorded data from compatible LogTag data loggers
• Configuring reusable LogTag recorders
• Cold chain logger management
• Pharmaceutical temperature monitoring systems
• Food storage and distribution monitoring
• Laboratory logger management
• Quality assurance and compliance documentation workflows
